A1000

  • CIMR-A A1000 Variable Frequency Drive Datablad
  • Thank you for downloading the CIMR-A A1000 Variable Frequency Drive Datablad

    Download again

    Did you know that 4 out of 5 distributors buy this product in a bundle?

    There are many variations of passages of Lorem Ipsum available, but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.

    Read more
Features

High performance vector control

Ratings 200 V Class three-phase 0.4 to 110 kW 400 V Class three-phase 0.4 to 630 kW

  • Current vector control, with or without PG
  • High starting torque (200% / 0.3 Hz, spd range 1:200 OLV), (200% at 0 r/min, spd range 1:1500 CLV)
  • Double rating ND 120%/1min and HD 150%/1 min
  • Advanced Auto-Tuning for IM & PM Motors
  • Open Loop Control of PM Motors
  • Low-noise Low carrier technology
  • 10 years lifetime design
  • Screw-less terminals
  • Control Terminals with memory backup
  • 24 VDC control board power supply option
  • Fieldbus communications: Modbus, Profibus, CANopen, DeviceNet, ML-II, PROFINET, EtherCAT and EtherNet/IP
  • Safety embedded: EN954-1 safety cat. 3, stop category 0, IEC EN 61508 SIL 2 and EN61800-5-1 with EDM
  • Regenerative solutions as option
  • CE, UL, cUL and TUV
Specifications & ordering info
Produkt Inverter control method Drive supply voltage Max. motor output at constant torque (HD) Max. motor output at variable torque (ND) Built in EMC filter Degree of protection (IP) Finless type Compatible motor type Regenerative solutions Communication port(s) Communication option(s)
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 0.55 kW 0.75 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 0.75 kW 1.1 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 1.5 kW 2.2 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 2.2 kW 3 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 4 kW 5.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 5.5 kW 7.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 7.5 kW 11 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 11 kW 15 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 15 kW 18.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 18.5 kW 22 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 22 kW 30 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 30 kW 37 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 37 kW 45 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 45 kW 55 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 55 kW 75 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 75 kW 90 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 90 kW 110 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 230 V three phase 110 kW 110 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 0.55 kW 0.75 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 1.1 kW 1.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 1.5 kW 2.2 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 2.2 kW 3 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 3 kW 4 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 4 kW 5.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 5.5 kW 7.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 7.5 kW 11 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 11 kW 15 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 15 kW 18.5 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 18.5 kW 22 kW FALSE IP20 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 22 kW 30 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 30 kW 37 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 37 kW 45 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 45 kW 55 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 55 kW 75 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 75 kW 90 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 90 kW 110 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 110 kW 132 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 132 kW 160 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 160 kW 185 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 185 kW 220 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 220 kW 250 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 315 kW 355 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 450 kW 500 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector 400 V three phase 560 kW 630 kW FALSE IP00 FALSE Induction or asynchronous motor, Permanent magnet motor As inverter option MODBUS Slave, Serial RS-422, Serial RS-485 CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave
Compare products Show more products
Accessories

Regenerative accessories

D1000 kit - DC Supply with Regenerative Active Front End system

Regenerative DC bus supply unit (D1000)

Reference: CIMR-DC_

4A0005

4A0010

4A0020

4A0030

4A0040

4A0060

4A0100

4A0130

4A0185

4A0270

4A0370

4A0630

Max. applicable motor capacity (kW)

3.7

7.5

15

22

30

45

75

110

160

220

315

560

Rated output capacity (kW)1

5

10

20

30

40

60

100

130

185

270

370

630

Rated input current AC (A)

8

16

30

43

58

86

145

210

300

410

560

1040

Rated output current DC (A)

8

15

30

45

61

91

152

197

280

409

561

955

Rated input voltage

3-phase 380 to 480 VAC

Rated output voltage

660 VDC

Rated frequency

50/60 Hz

Input power factor

> 0.99

Carrier frequency

6

4

2

Degree of protection

IP20 (CIMR-DC4A0005 to CIMR-DC4A0020 models)

IP00 (CIMR-DC4A0030 to CIMR-DC4A0630 models)

Ambient humidity

95% RH or less (without condensation)

Storage temperature

-20 to 60ºC

Ambient temperature

-10 to 50ºC

EMC filter

Reference: B84143_

A0020R106

A0035R106

A0065R106

B0180S080

B0400S080

B1000S080

B1600S080

Rated current (A)

20

35

65

180

400

1000

1600

Leakage current (mA)

3.1

3.4

3.4

< 21

< 21

< 40

< 40

Rated voltage

300/520 VAC

Rated frequency

50/60 Hz

Rated temperature

50ºC

Degree of protection

IP20

Low harmonic filter

Reference: B84143G_

0008R176

0016R176

0030R176

0043R176

0058R176

0086R176

0145R176

0210S176

0300S176

0410S176

0560S176

1140S176

Rated current (A)

8

16

30

43

58

86

145

210

300

410

560

1140

Heat loss (W)2

75

140

165

240

260

300

515

665

855

1398

1970

4015

Rated voltage

305/530 VAC

Rated frequency

50/60 Hz

Rated temperature

50ºC

Degree of protection

IP00

R1000 kit - Regenerative Braking unit system

Regenerative Braking unit (R1000)

Reference: CIMR-RC_

4A03P5

4A0005

4A0007

4A0010

4A0014

4A0017

4A0020

4A0028

4A0035

4A0043

4A0053

4A0073

4A0105

4A0150

4A0210

4A0300

Max. applicable
motor capacity (kW)

3.7

5.5

7.5

11

15

18.5

22

30

37

45

55

75

110

160

220

315

Rated output capacity (kW)3

3.5

5

7

10

14

17

20

28

35

43

53

73

105

150

210

300

Rated input current AC (A)

5

8

11

16

22

27

32

43

54

66

81

110

161

237

326

466

Rated output current DC (A)

7

11

15

22

30

36

43

58

73

89

109

149

217

320

440

629

Rated input voltage

3-phase 380 to 480 VAC

Rated frequency

50/60 Hz

Power factor

> 0.9 at full load

Degree of protection

IP20 (CIMR-RC4A03P5 to CIMR-RC4A0028 models)

IP00 (CIMR-RC4A0035 to CIMR-RC4A0300 models)

Ambient humidity

95% RH or less (without condensation)

Storage temperature

-20 to 60ºC

Ambient temperature

-10 to 50ºC

Current suppression reactor

Reference: B150_

9105

9106

9107

9108

9109

9110

4118

9111

9112

9113

9114

5002

5008

5011

Rated current (A)

7.5

10

15

25

30

40

50

60

75

100

161

237

326

466

Inductance (mH)

1.2

0.6

0.4

0.3

0.2

0.15

0.12

0.1

0.08

0.06

0.04

0.03

0.02

0.013

Heat loss (W)

21

19

23

36

33

40

46

56

81

72

95

105

120

160


1. Rated output capacity is calculated with a rated input voltage of 400 V.

2. Heat loss at nominal current and 20ºC winding temperature with harmonics.

3. Rated output capacity is calculated with a rated input voltage of 400 V.

1. Rated output capacity is calculated with a rated input voltage of 400 V.

2. Heat loss at nominal current and 20ºC winding temperature with harmonics.

3. Rated output capacity is calculated with a rated input voltage of 400 V.

Software

CX-Drive

cx-drive2 prod
Reduce the time and complexity of configuring, commissioning and maintaining servos and inverters with a single software tool. CX-Drive includes support for features in the new Accurax G5 servo system and MX2 inverter.

CX-One

cx-one screen prod
CX-One software allows users to build, configure and program a host of devices such as PLCs, HMIs and motion-control systems and networks using just one software package with one installation and license number. This greatly reduces the complexity of the configuration and allows automation systems to be programmed or configured with minimal training.
Application Software

Ordering info

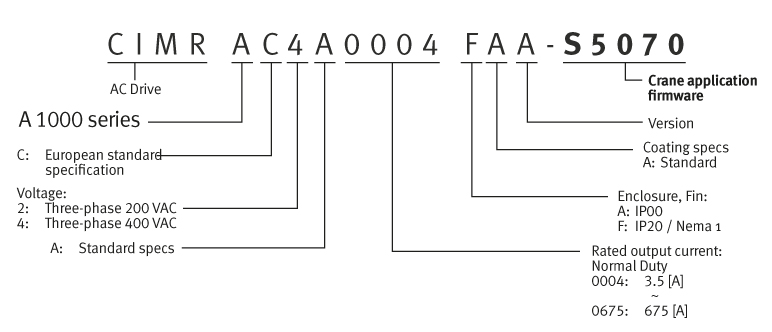

a1000 application software ordering prod
