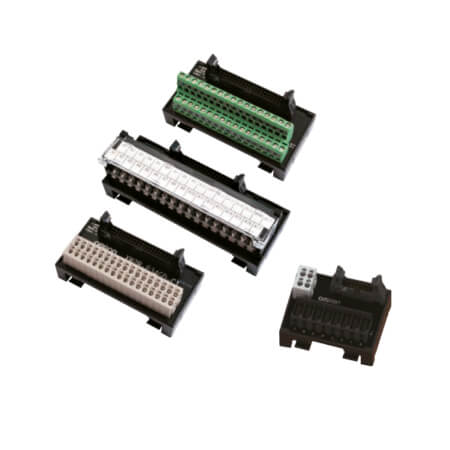

XW2F
Connector-Terminal Block Conversion Units for General-purpose Devices
Many Variations in Connectors and Number of Poles.
- Models available with Phillips screw, slotted screw, push-in, or e-CON connections.
- The terminal arrangement enables smoother wiring work.
- Push-in terminals simplify wiring and make the Terminal Blocks even easier to use. (In comparison to the OMRON XW2F.)
- Mounting to DIN Track is possible.
Specifications & ordering info
Ordering Information
With power supply terminals
e-CON Type
| Appearance | I/O Points | I/O | Mounted Connector model | Cable Connector model | Order code
2
Only DIN Track mounting models
are described here. Refer to the XW2R-series Connector-Terminal
Block Conversion Units Catalog (Cat. No. G077) for information on
screw mounting models. |
|---|---|---|---|---|---|
 |
8 Points | Input | XG4A-1431 (MIL Connector) XN2D-4471 (e-CON Connector) |
XG4M-1430-T (MIL Connector) XN2A-1470 (e-CON Connector) |
XW2R-N08GD-COM |
Input Device Connectors
XN2 e-CON Connectors
| Appearance | Number of poles | Description | Order code |
|---|---|---|---|
 |
4 | For Sensor | XN2A-1470 |
 |
4 | Relay Connector | XN2B-1470 |
Without power supply terminals
Phillips screw
| Appearance
2
The mounted Connector shown in
the appearance illustration is a MIL Connector. |
Mounted Connector model | Number of poles | Dimension A (mm) | Order code
2
Only DIN Track mounting models
are described here. Refer to the XW2R-series Connector-Terminal
Block Conversion Units Catalog (Cat. No. G077) for information on
screw mounting models. |
|
|---|---|---|---|---|---|
 |
MIL Connector | XG4A-2031 | 20 | 81.7 | XW2R-J20GD-T |
| XG4A-3431 | 34 | 130.7 | XW2R-J34GD-T | ||
| XG4A-4031 | 40 | 151.7 | XW2R-J40GD-T | ||
| XG4A-5031 | 50 | 186.7 | XW2R-J50GD-T | ||
| XG4A-6031 | 60 | 221.7 | XW2R-J60GD-T | ||
| FCN Connector | FCN-364P040-AU | 40 | 151.7 | XW2R-J40FD-T | |
Slotted screw (rise up)
| Appearance
2
The mounted Connector shown in
the appearance illustration is a MIL Connector. |
Mounted Connector model | Number of poles | Dimension A (mm) | Order code
2
Only DIN Track mounting models
are described here. Refer to the XW2R-series Connector-Terminal
Block Conversion Units Catalog (Cat. No. G077) for information on
screw mounting models. |
|
|---|---|---|---|---|---|
 |
MIL Connector | XG4A-2031 | 20 | 64.4 | XW2R-E20GD-T |
| XG4A-3431 | 34 | 98.5 | XW2R-E34GD-T | ||
| XG4A-4031 | 40 | 113.5 | XW2R-E40GD-T | ||
| XG4A-5031 | 50 | 138.5 | XW2R-E50GD-T | ||
| XG4A-6031 | 60 | 163.5 | XW2R-E60GD-T | ||
| FCN Connector | FCN-364P040-AU | 40 | 113.5 | XW2R-E40FD-T | |
Push-in spring
| Appearance
2
The mounted Connector shown in
the appearance illustration is a MIL Connector. |
Mounted Connector model | Number of poles | Dimension A (mm) | Order code
2
Only DIN Track mounting models
are described here. Refer to the XW2R-series Connector-Terminal
Block Conversion Units Catalog (Cat. No. G077) for information on
screw mounting models. |
|
|---|---|---|---|---|---|
 |
MIL Connector | XG4A-2031 | 20 | 64.4 | XW2R-P20GD-T |
| XG4A-3431 | 34 | 98.5 | XW2R-P34GD-T | ||
| XG4A-4031 | 40 | 113.5 | XW2R-P40GD-T | ||
| XG4A-5031 | 50 | 138.5 | XW2R-P50GD-T | ||
| XG4A-6031 | 60 | 163.5 | XW2R-P60GD-T | ||
| FCN Connector | FCN-364P040-AU | 40 | 113.5 | XW2R-P40FD-T | |
Specifications
| Item | XW2R-N |
XN2 |
XW2R-J |
XW2R-E |
XW2R-P |
|
|---|---|---|---|---|---|---|
| Rated current | Power supply terminal block: 2 A, Connectors/e-CON Connectors: 1 A (However, rated current of e-CON Connector depends on the wires that are used.) |
3 A/pin (with AWG20 wires), 2 A/pin (with AWG22 wires), 1 A/pin (with AWG24 wires), 0.5 A/pin (with AWG26 or AWG28 wires) | 1 A | |||
| Rated voltage | 24 VDC | 32 VDC | 125 VAC, 24 VDC | |||
| Contact resistance | – | 30 mΩ max. (at 20 mV, 100 mA max.) |
– | |||
| Insuration resistance | 100 MΩ min. (at 500VDC) | 103 MΩ min. (at 500 VDC) | 100 MΩ min. (at 500 VDC) | |||
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) |
1,000 VAC for 60 sec (leakage current: 1 mA max.) |
500 VAC for 1 min (leakage current: 1 mA max.) |
|||
| Insertion durability | – | 50 times | – | |||
| Ambient operating temperature | 0 to 55°C | –30 to 75°C
2
The operating temperature range
is restricted by the maximum operating temperature of the cable. |
0 to 55°C | |||
| Applicable wires |
Applicable wire sizes
2
This is the applicable range for the Power supply terminals. |
AWG 24 to 14 (ferrules), AWG 28 to 14 (stranded wires), AWG 28 to 16 (solid wires) (Outer diameter of insulation must be 4 mm max) |
Stranded wire 0.08 mm 2 (AWG28) to 0.5 mm 2 (AWG20) (Outer diameter of insulation must be 1.5 mm max) |
AWG 22 to 16 (round or forked crimp terminals) AWG 26 to 16 (stranded or solid wires) |
AWG 22 to 16 (ferrules) AWG 26 to 16 (stranded or solid wires) |
AWG 24 to 14 (ferrules) AWG 28 to 14 (stranded or solid) (Outer diameter of insulation must be 4 mm max) |
| Stripped length |
AWG28-16: 8 to 10 mm AWG14: 9 to 10 mm |
– | 9 mm | 7 mm | AWG28-16: 8 to 10 mm AWG14: 9 to 10 mm |
|
| Tightening | – | 0.5 N·m | 0.5 to 0.6 N·m | – | ||
