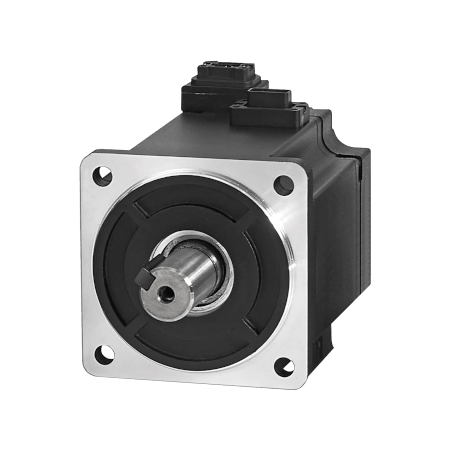

C6 Motors
Cost-effective modern servo technology
Ratings: 230 VAC from 50 W to 1.5 kW, 400 VAC from 850 W to 7.5 kW
- 26-bit resolution encoder
- Compact and small motor size
- Large range of motor variations available
- Pre-assembled motor cables
- Designed for easy EMC compliance
- Absolute encoder with battery backup; also configurable for incremental operation
Need assistance?
We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.
+47 22 65 75 00
Contact us
Kontakt meg C6 Motors
Takk for din forespørsel. Vi vil kontakte deg så snart som mulig.
Vi har for tiden tekniske problemer. Ditt skjema har ikke blitt innsendt. Vi beklager så mye og håper du vil prøve igjen senere. Detaljer:
+47 22 65 75 00
+47 22 65 75 00
Request quotation
Request quotation
Tilbud for C6 Motors
Ved å fylle ut dette skjemaet vil du motta et tilbud på det valgte produktet. Vennligst fyll inn alle obligatoriske felter. Dine personlige opplysninger vil bli behandlet konfidensielt.
Takk for din tilbudsforespørsel. Vi vil sende deg det forespurte tilbudet så snart som mulig.
Vi har for tiden tekniske problemer. Ditt skjema har ikke blitt innsendt. Vi beklager så mye og håper du vil prøve igjen senere. Detaljer:
Request quotation
Request quotation
Specifications & ordering info
| Produkt | Servo control method | Drive supply voltage | Rated torque | Rated speed | Rated output | Encoder type | Motor with brake | Description | |
|---|---|---|---|---|---|---|---|---|---|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.16 Nm | 3000 r/min | 0.05 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 50 W, 230 VAC, 3000 rpm, 0.16 Nm, absolute encoder, with brake and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.16 Nm | 3000 r/min | 0.05 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 50 W, 230 VAC, 3000 rpm, 0.16 Nm, absolute encoder, wiht key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.32 Nm | 3000 r/min | 0.1 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 100 W, 230 VAC, 3000 rpm, 0.32 Nm, absolute encoder, with brake and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.32 Nm | 3000 r/min | 0.1 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 100 W, 230 VAC, 3000 rpm, 0.32 Nm, absolute encoder, wiht key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 3.2 Nm | 3000 r/min | 1 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 1 kW, 230 VAC, 3000 rpm, 3.2 Nm, absolute encoder, with brake and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 3.2 Nm | 3000 r/min | 1 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 1 kW, 230 VAC, 3000 rpm, 3.2 Nm, absolute encoder, wiht key |
|
|
|
EtherCAT | 400 V three phase | 8.34 Nm | 1500 r/min | 1.3 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 1.3 kW, 400 VAC, 1500 rpm, 8.34 Nm, absolute encoder, with brake, oil seal and key |
|
|
|
EtherCAT | 400 V three phase | 8.34 Nm | 1500 r/min | 1.3 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 1.3 kW, 400 VAC, 1500 rpm, 8.34 Nm, absolute encoder, with oil seal and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 8.34 Nm | 1500 r/min | 1.3 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 1.3 kW, 230 VAC, 1500 rpm, 8.34 Nm, absolute encoder, with brake, oil seal and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 8.34 Nm | 1500 r/min | 1.3 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 1.3 kW, 230 VAC, 1500 rpm, 8.34 Nm, absolute encoder, with oil seal and key |
|
|
|
EtherCAT | 400 V three phase | 11.5 Nm | 1500 r/min | 1.8 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 1.8 kW, 400 VAC, 1500 rpm, 11.5 Nm, absolute encoder, with brake, oil seal and key |
|
|
|
EtherCAT | 400 V three phase | 11.5 Nm | 1500 r/min | 1.8 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 1.8 kW, 400 VAC, 1500 rpm, 11.5 Nm, absolute encoder, with oil seal and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.64 Nm | 3000 r/min | 0.2 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 200 W, 230 VAC, 3000 rpm, 0.64 Nm, absolute encoder, with brake and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 0.64 Nm | 3000 r/min | 0.2 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 200 W, 230 VAC, 3000 rpm, 0.64 Nm, absolute encoder, wiht key |
|
|
|
EtherCAT | 400 V three phase | 18.5 Nm | 1500 r/min | 2.9 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 2.9 kW, 400 VAC, 1500 rpm, 18.5 Nm, absolute encoder, with brake, oil seal and key |
|
|
|
EtherCAT | 400 V three phase | 18.5 Nm | 1500 r/min | 2.9 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 2.9 kW, 400 VAC, 1500 rpm, 18.5 Nm, absolute encoder, with oil seal and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 1.27 Nm | 3000 r/min | 0.4 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute encoder, with brake and key |
|
|
|
EtherCAT | 230 V single phase, 230 V three phase | 1.27 Nm | 3000 r/min | 0.4 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute encoder, wiht key |
|
|
|
EtherCAT | 400 V three phase | 28 Nm | 1500 r/min | 4.4 kW | Absolute with battery | Yes | C6 AC servo motor, High inertia, 4.4 kW, 400 VAC, 1500 rpm, 28 Nm, absolute encoder, with brake, oil seal and key |
|
|
|
EtherCAT | 400 V three phase | 28 Nm | 1500 r/min | 4.4 kW | Absolute with battery | No | C6 AC servo motor, High inertia, 4.4 kW, 400 VAC, 1500 rpm, 28 Nm, absolute encoder, with oil seal and key |
|
