E3AS

E3AS Series Photoelectric Sensor

E3AS Series changes the “way of using” photoelectric sensors

  • Wide range of solution up to 1,5m.
  • High relievable detection for shiny, uneven & transparent objects.
  • Spot beam and Line beam to detect any challenging object.
  • Transparent detection objects without reflector.
  • OLED display for easy navigation & advance adjustments.
  • Compact-sized body can be mounted anywhere.
  • Manufactured using OMRON's proprietary laser sealing method.
  • IP67/IP69K/IP67G.
  • Antifouling coatings reduce the cleaning frequency on the sensing surface.
  • IO-Link reduces the time required for start-ups and changeovers.
  • Air blow accessory for easy maintenance.
  • Equipped with OMRON's proprietary light emitting element for stable detection of low-reflective. workpieces.

Specifications & ordering info

Produkt Shape Sensing method Sensing distance Sensing distance (min.) Setting method Connection method Cable length Output type Operation mode IO-Link baud rate Response time Material housing Type of light Laser class Spot size Power supply voltage Features Description
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, 2 m prewired
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, NPN, L-ON/D-ON, 2 m prewired
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, NPN, L-ON/D-ON, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, NPN, L-ON/D-ON, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M8 4-pin connector
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, 2 m prewired
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M8 4-pin connector
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, NPN, L-ON/D-ON, 2 m prewired
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, NPN, L-ON/D-ON, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, NPN, L-ON/D-ON, M8 4-pin connector
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M8 Pig-tail 0.3m
Photoelectric sensor, compact square, plastic body, TOF, 1000 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, 2 m prewired
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, NPN, L-ON/D-ON, 2 m prewired
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, NPN, L-ON/D-ON, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, NPN, L-ON/D-ON, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M8 4-pin connector
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, 2 m prewired
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM2, M8 4-pin connector
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, NPN, L-ON/D-ON, 2 m prewired
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, NPN, L-ON/D-ON, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, NPN, L-ON/D-ON, M8 4-pin connector
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M8 Pig-tail 0.3m
Photoelectric sensor, compact square, plastic body, TOF, 1500 mm, infrared laser, PNP, L-ON/D-ON, IO-Link COM3, M8 4-pin connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, NPN, Light-ON/Dark-ON, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, NPN, Light-ON/Dark-ON, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, NPN, Light-ON/Dark-ON, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 5 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 Pre-wired connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, NPN, Light-ON/Dark-ON, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, NPN, Light-ON/Dark-ON, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, NPN, Light-ON/Dark-ON, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 5 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 Pre-wired connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-150 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, NPN, Light-ON/Dark-ON, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, NPN, Light-ON/Dark-ON, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, NPN, Light-ON/Dark-ON, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 5 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 Pre-wired connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, line beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, NPN, Light-ON/Dark-ON, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, NPN, Light-ON/Dark-ON, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, NPN, Light-ON/Dark-ON, M8 connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, 5 m prewired
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M12 Pre-wired Smartclick connector
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 Pre-wired connector 4 pins
Photoelectric sensor, stainless steel, red laser class 1, background suppression, spot beam, 35-500 mm, PNP, Light-ON/Dark-ON, IO-Link COM3, M8 connector 4 pins
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, PNP, L-ON/D-ON, IO-Link COM2, 2 m prewired
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, PNP, L-ON/D-ON, IO-Link COM2, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, PNP, L-ON/D-ON, IO-Link COM2, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, NPN, L-ON/D-ON, 2 m prewired
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, NPN, L-ON/D-ON, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, NPN, L-ON/D-ON, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, PNP, L-ON/D-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, PNP, L-ON/D-ON, IO-Link COM3, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, BGS, 200 mm, red LED, PNP, L-ON/D-ON, IO-Link COM3, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, PNP, L-ON/D-ON, IO-Link COM2, 2 m prewired
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, PNP, L-ON/D-ON, IO-Link COM2, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, PNP, L-ON/D-ON, IO-Link COM2, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, NPN, L-ON/D-ON, 2 m prewired
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, NPN, L-ON/D-ON, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, NPN, L-ON/D-ON, M8 4-pin connector
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, PNP, L-ON/D-ON, IO-Link COM3, 2 m prewired
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, PNP, L-ON/D-ON, IO-Link COM3, M12 Smartclick Pig-tail 0.3 m
Photoelectric sensor, compact square, stainless steel, BGS, 80 mm, red LED, PNP, L-ON/D-ON, IO-Link COM3, M8 4-pin connector
No results found. Please expand your filter selection.
Reset all filters
Compare products Show more products

How can we help you?

If you have a question or would like to ask for a quote, please contact us or send a request.

+47 22 65 75 00
Contact us

Kontakt meg

Vennligst fyll inn alle obligatoriske felter. Dine personlige opplysninger vil bli behandlet konfidensielt.

Text area error notification

Text error notification

Text error notification

Text error notification

Text error notification

Country error notification

Checkbox error notification

Checkbox error notification

Takk for din forespørsel. Vi vil kontakte deg så snart som mulig.

Vi har for tiden tekniske problemer. Ditt skjema har ikke blitt innsendt. Vi beklager så mye og håper du vil prøve igjen senere. Detaljer:

Download
Pricing
Request a quote

Send meg et tilbud

Ved å fylle ut dette skjemaet vil du motta et tilbud på det valgte produktet. Vennligst fyll inn alle obligatoriske felter. Dine personlige opplysninger vil bli behandlet konfidensielt.

E3AS

Text error notification

Text error notification

Text error notification

Select notification error

Select notification error

Country error notification

Text error notification

Text area error notification

Checkbox error notification

Checkbox error notification

Takk for din tilbudsforespørsel. Vi vil sende deg det forespurte tilbudet så snart som mulig.

Vi har for tiden tekniske problemer. Ditt skjema har ikke blitt innsendt. Vi beklager så mye og håper du vil prøve igjen senere. Detaljer:

Download

Features

E3AS-HL for multi-lane conveyor lines of targets with curved surface

Stably detects cans and plastic bottles without reflectors

Left image: Retro-reflective sensors are used to detect poorly reflective curved surfaces of cans and transparent plastic bottles, but securing installation space for reflectors on multi-lane conveyor lines is difficult.

Right image: The E3AS-HL Sensor, a reflective model capable of detecting the slightest change in the incident light level or distance, can stably detect cans and plastic bottles without reflectors.

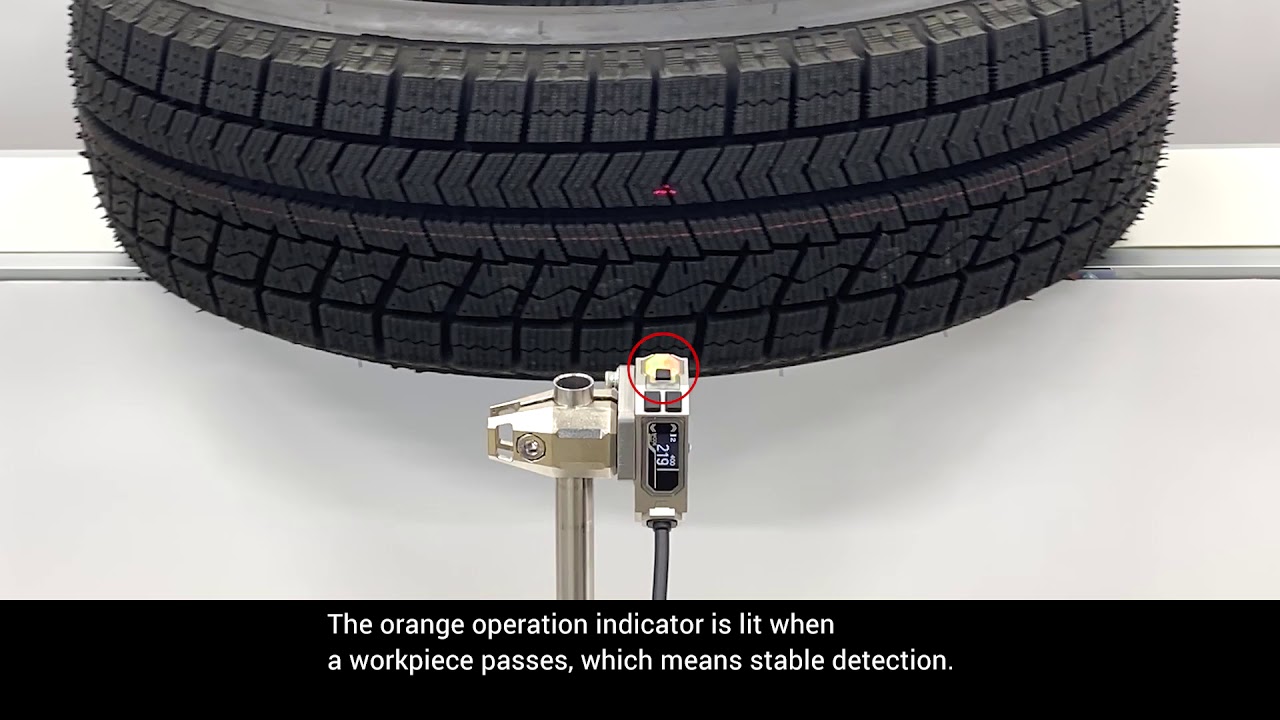

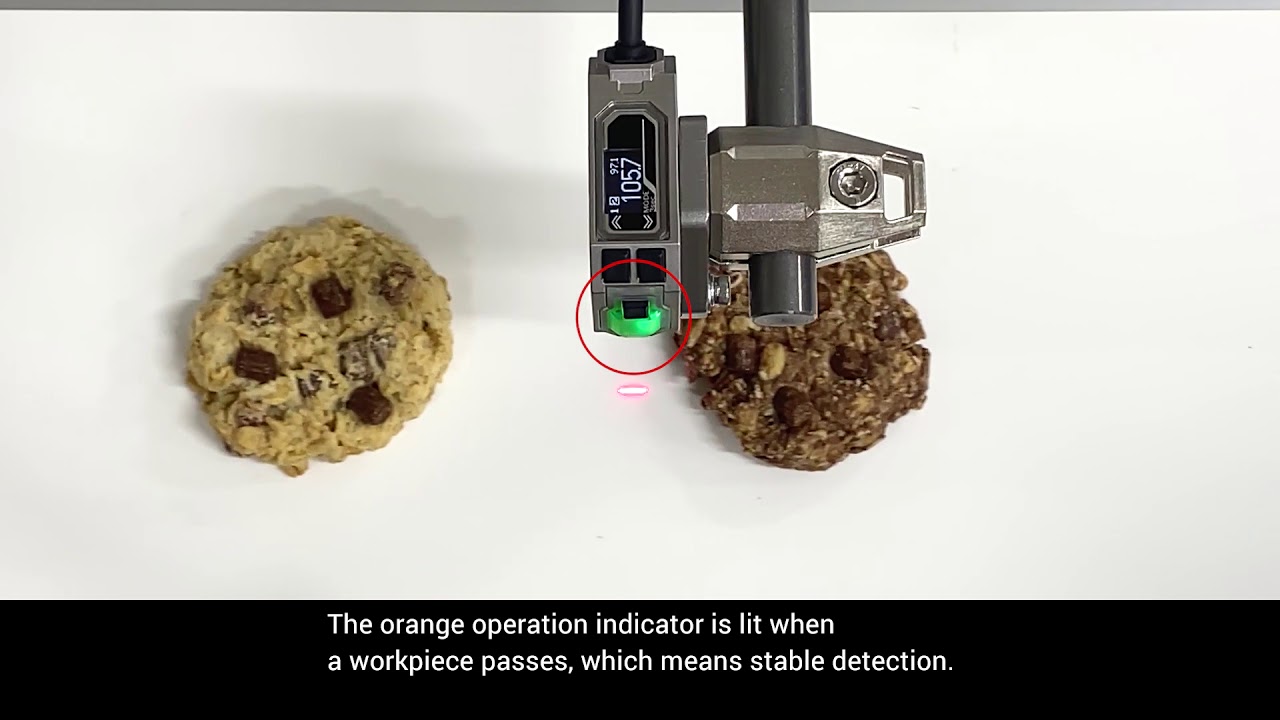

E3AS-HL for complex-shaped, colored, patterned or glossy targets

Left image: With spot beam, detection is unstable since the reflected light does not reach the sensor depending on the profile of the target surface. With the line beam of the E3AS-HL Sensor, detection is less affected by the profile of the surface since the reflected light reaches the sensor from any part of the surface.

Right image: Detection is prone to be unstable because color, pattern or reflectivity affects the sensing distance. The E3AS-HL Sensor is less likely to be affected by them, providing stable detection even when packaging materials change.

E3AS-F for long-distance sensing on converging and diverging lines

No reflector is required to design long-distance sensing unaffected by color or material of targets

Although retro-reflective sensors are used for long-distance sensing in converging and diverging lines, it is difficult to find installation space for reflectors.

The E3AS-HL Sensor, a reflective model with long sensing distance, does not require reflectors. Moreover, it is less likely to be affected by color even from long distances.

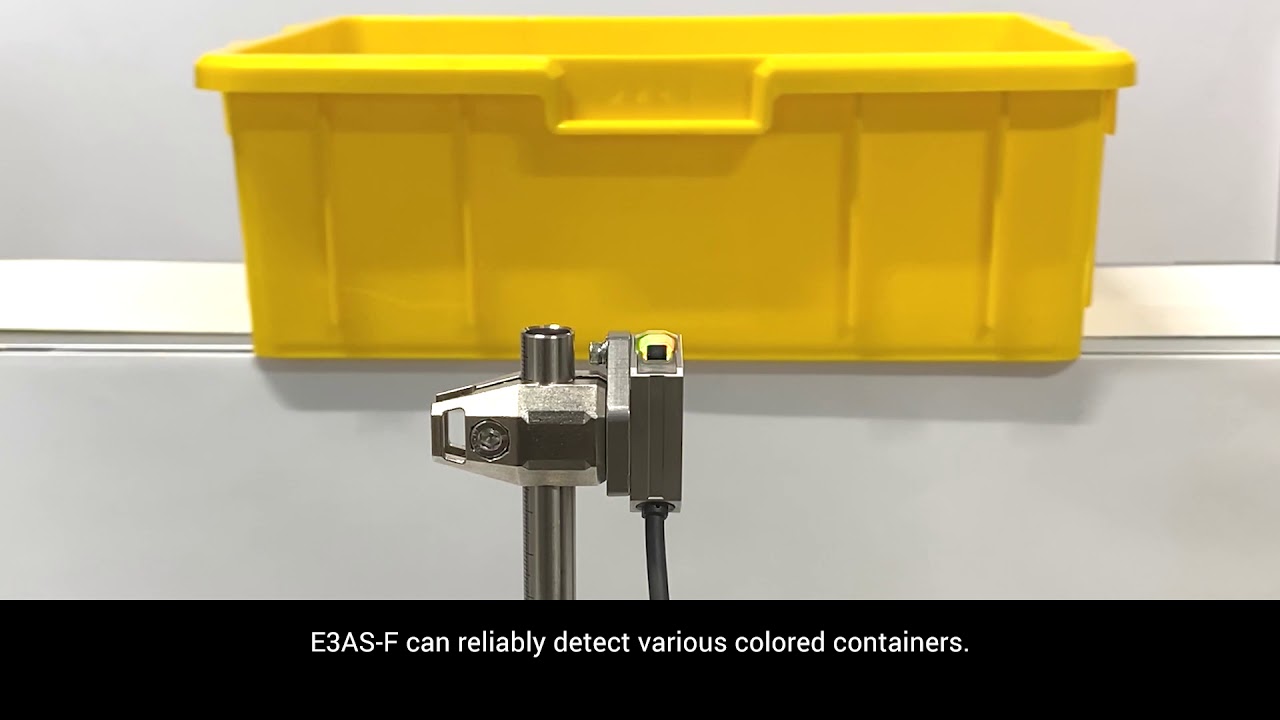

TOF method enables detection of various workpieces on the conveyor line

With conventional photoelectric sensors, prior evaluation was required for each workpiece to be detected. E3AS-F Sensors detect workpieces varying in colors and materials by the set distance. This helps reduce evaluation and adjustment time. Also, they do not detect workers working near the line by mistake.

Antifouling coating prevents contamination on the sensing surface

Dirty sensing surface can cause false detection due to the principle of photoelectric sensors. E3AS Series with the antifouling coating on the sensing surface, which is the industry's first, prevents water droplets, oil, and dust from sticking to the sensing surface, and keeps the lens from fogging as well. Therefore, the coating prevents contamination on the sensing surface in environments where oil or dust scatters, or steam generates. False detection and cleaning frequency are also reduced.

Laser welding technologies for different materials/metals for increased environmental resistance

The sensor case is made of stainless steel (SUS316L). Omron's two unique technologies, laser welding technology for different materials and laser welding technology for metals, enhanced the sealing and adhesion between the stainless steel and resin.

Laser welding technology for different materials

It is a technology to weld different materials, resin and metal, using laser beams. Small holes are bored into the metal case, then melt the resin part by laser. The melted resin fills the holes for secure sealing and adhesion.

Laser welding technology for metals

The metal case and cover are welded by a laser beam to seal the gaps. This provides higher airtightness compared to adhesives, keeping out water, oil and other substances to reduce failures.
